From clean indoor pallet handling to long outdoor shifts, the ZHUOJIE range covers 1-10 tonne electric forklifts, 3-5 tonne diesel forklifts, compact stacking and powered pallet transfer.
ZHUOJIE MATERIAL HANDLINGStart with the job: counterbalance lifting, outdoor duty, rack stacking or horizontal pallet transfer. Each family has a dedicated specification and inquiry page.

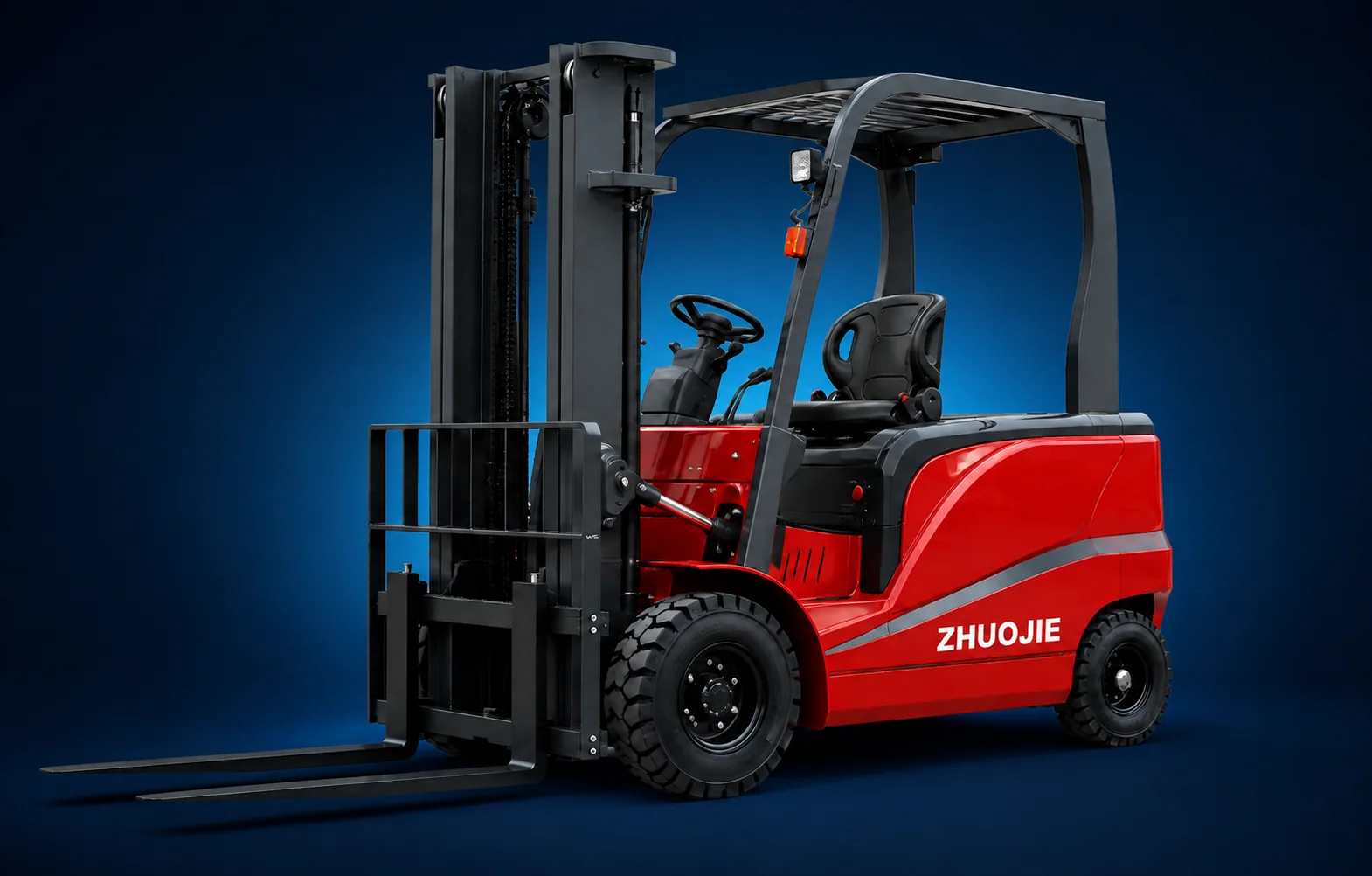

ZHUOJIE Material Handling / Battery Counterbalance
A broad battery-powered counterbalance range for indoor logistics, warehouses and mixed loading operations, with ten capacities from 1,000 to 10,000 kg.

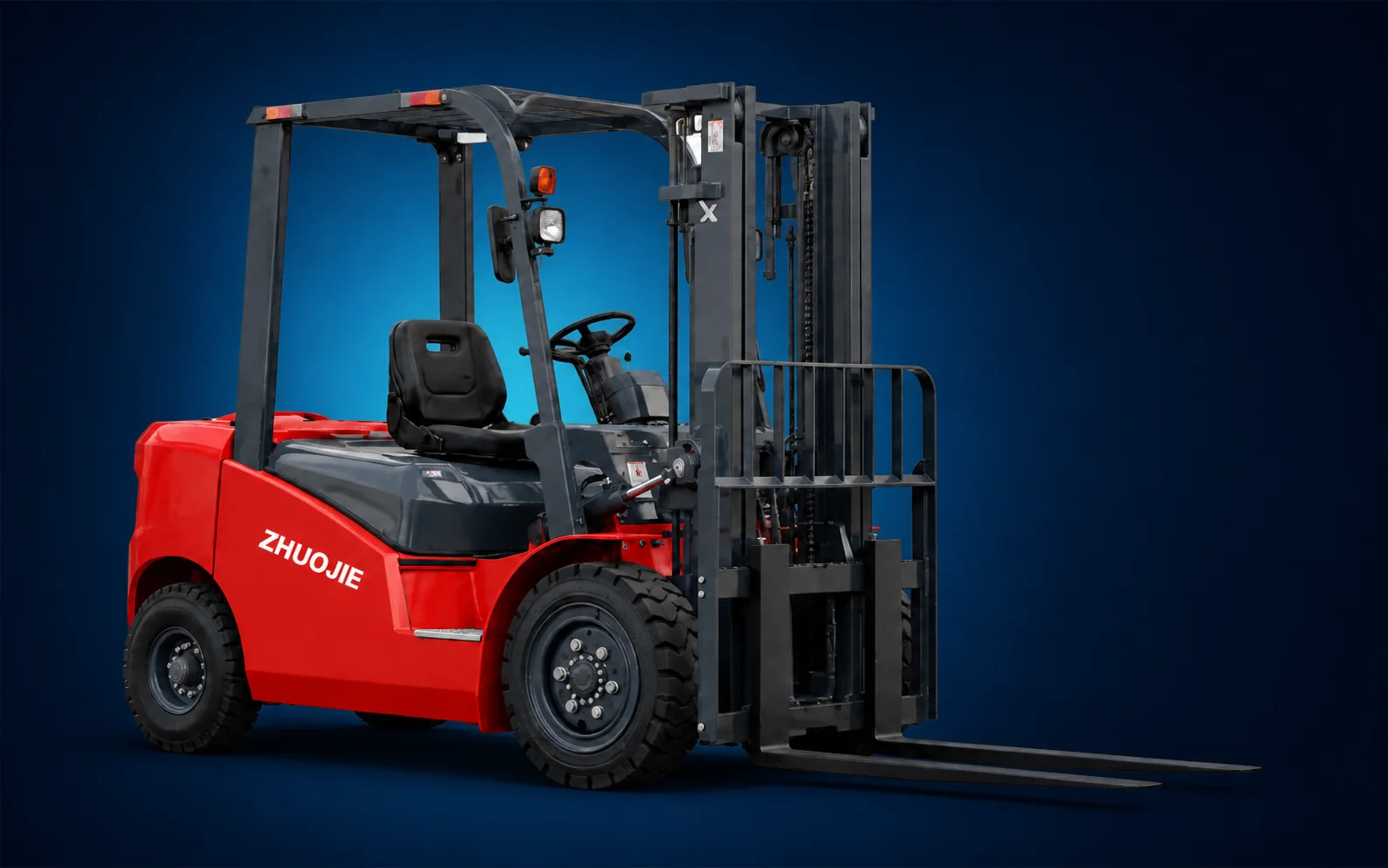

ZHUOJIE Material Handling / Outdoor Duty
Pneumatic-tire diesel counterbalance forklifts for yards, freight handling and long outdoor shifts, offered in 3.0, 3.5, 4.0 and 5.0 tonne classes.

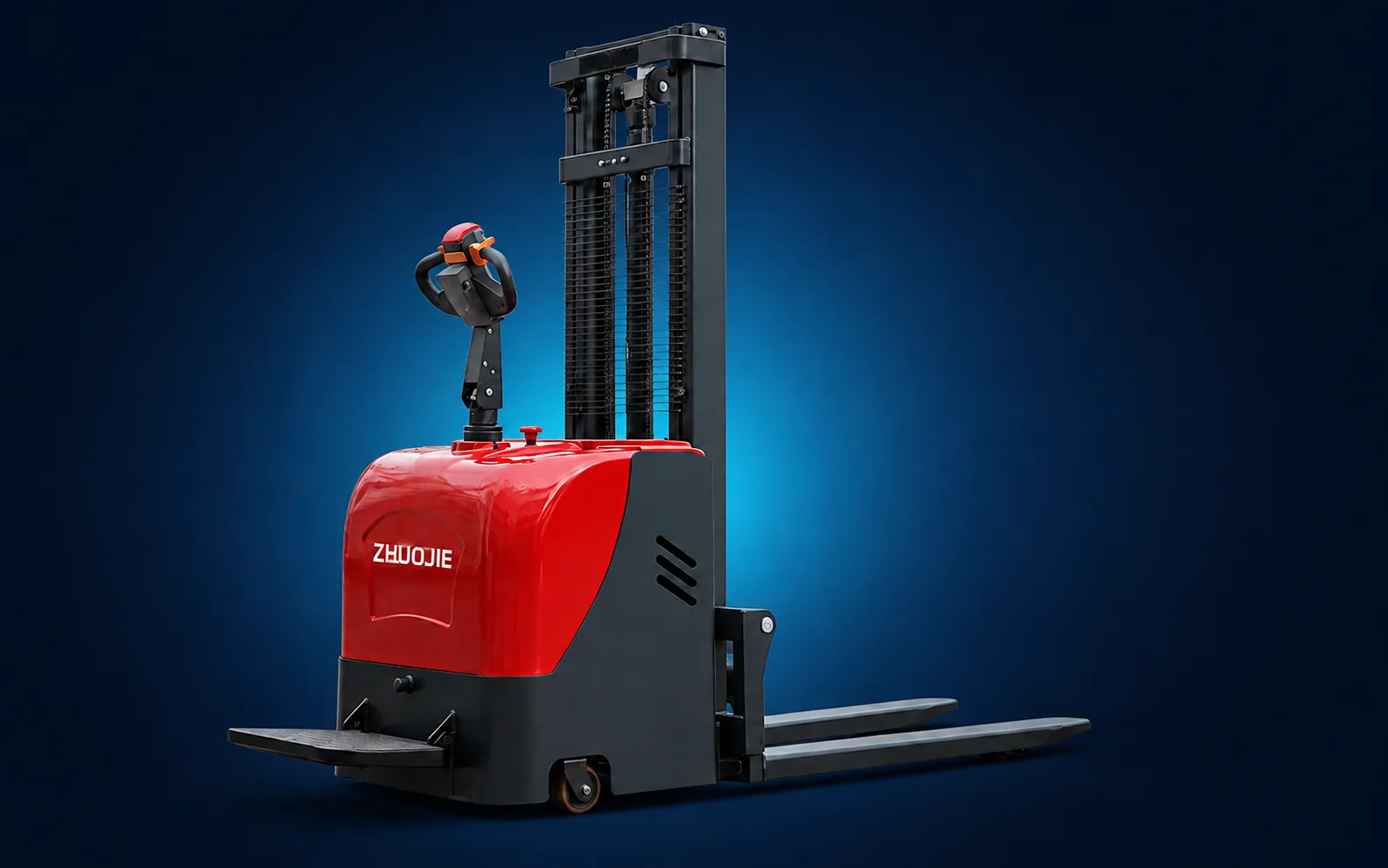

ZHUOJIE Material Handling / Compact Stacking
A 2,000 kg stand-on electric stacker with 3,000 mm lift, polyurethane wheels and compact dimensions for warehouse stacking and pallet positioning.

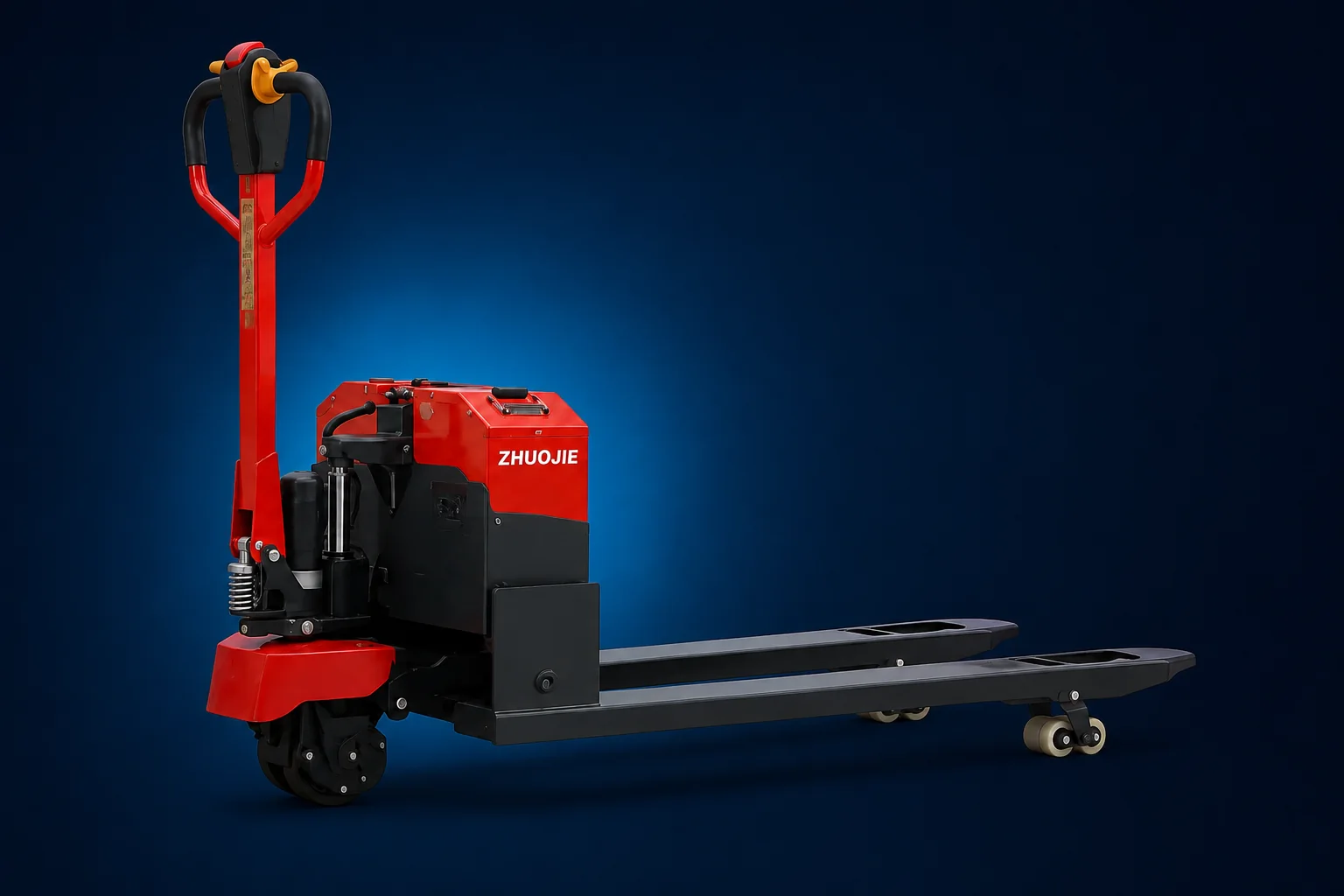

ZHUOJIE Material Handling / Horizontal Transfer
A compact fully powered walk-behind pallet truck for loading bays, short warehouse routes and fast horizontal pallet transfer up to 3,000 kg.
CPD battery forklifts combine zero tailpipe emissions, AC control and capacities from 1,000 to 10,000 kg.
CPC diesel forklifts prioritize long shifts, pneumatic tires and quick refueling in 3,000-5,000 kg classes.
CDD-20 stacks to 3,000 mm; CBD handles fast low-level pallet transfer in compact spaces.
Compare the published load class, drive motor and turning radius before matching battery, mast and attachments to the real site.
Catalog values are presented for initial selection. Final specification is subject to the signed technical proposal and order confirmation.
| Model | Rated capacity | Drive motor | Turning radius |
|---|---|---|---|
| CPD-10 | 1,000 kg | 2.5 kW | 1,900 mm |
| CPD-15 | 1,500 kg | 4.0 kW | 2,250 mm |
| CPD-20 | 2,000 kg | 5.0 kW | 2,400 mm |
| CPD-25 | 2,500 kg | 7.5 kW | 2,300 mm |
| CPD-30 | 3,000 kg | 8.5 kW | 2,500 mm |
| CPD-35 | 3,500 kg | 13.5 kW | 2,850 mm |
| CPD-40 | 4,000 kg | 16.5 kW | 2,850 mm |
| CPD-50 | 5,000 kg | 18.5 kW | 3,300 mm |
| CPD-70 | 7,000 kg | 30 kW | 3,180 mm |
| CPD-100 | 10,000 kg | 35 kW | 3,460 mm |
Maximum weight, load dimensions, center of gravity and pallet type.
Aisle width, turning points, ramps, floor condition and indoor/outdoor use.
Rack height, overhead clearance, free lift, forks and required attachment.
Daily hours, charging or fuel plan, local power and destination compliance.
We will match the capacity, power type, dimensions and options, then prepare an export quotation under the ZHUOJIE brand or an agreed OEM program.
