T-12 Wash & Dry Integrated Car Wash Machine — Main Machine

Pressure100–140 kg

Power22 kW

Water90–120 L

Warranty3 years

Flexible L-Arm Rail — 3-Year Warranty

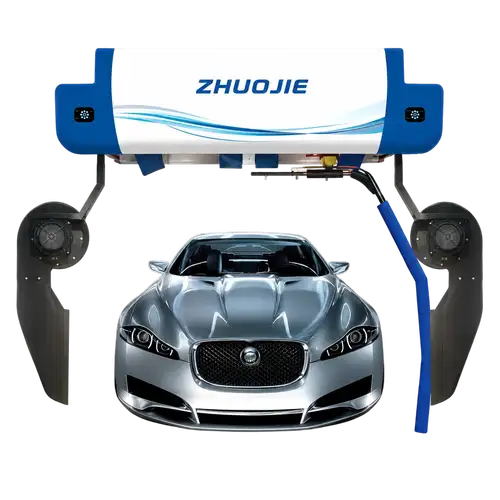

T-12 Wash & Dry Integrated Car Wash Machine

T-12 wash-and-dry integrated line with 22 kW Perfect Power output, stainless-steel body, 3+N pipeline separation and embedded mobile drying — also available as T-12plus (Washing and Drying Machine) with expanded smart-site options.

B2B quotationExport supportT-Series Wash & Dry

ModelT-12 / T-12plus

Main PumpPerfect Power (Maxten)

Voltage / Power380 V, 22 kW

Warranty3 years complete machine

Request Quote Compare Models

Best fit project

Commercial sites that need a flexible rail-type L-arm wash-and-dry line with flagship pump output, stainless-steel build and a 3-year complete-machine warranty.

Country / market
Site size & wash bay plan
Power capacity (22 kW)
Warranty / service expectations
Optional unattended / LPR modules (T-12plus)

Model Positioning

T-12 Overview

This area is built to answer a B2B buyer's first questions quickly: what this machine is, where it fits, and how it differs from the other models in the range.

Why buyers consider T-12

22 kW Perfect Power (Maxten) pump at 100–140 kg supports flagship commercial washing throughput.

3-year complete-machine warranty strengthens long-term B2B positioning versus 1-year S-Series models.

Flexible L-arm left-right travel on rail-type layout improves bay coverage compared with fixed central rotation.

Injection molded embedded mobile air drying with four 5.5 kW fans integrates wash and dry in one footprint.

Stainless-steel body, 3+N pipeline separation and colorful water-curtain maintenance cover premium chemical-stage demand.

T-12plus adds 24-hour unattended, auto door, voice, mobile remote, crosswind and license plate recognition for smart sites.

Selection advice

Choose T-12 when you need rail-type flexible L-arm wash-and-dry integration with 22 kW output and 3-year warranty; choose T-12plus when unattended-ready smart modules should be bundled from the start.

Choose this model if

Need wash + drying with 3-year warranty
Want flexible L-arm rail layout
Require 22 kW / 100–140 kg class output

Consider other models if

16 kW integrated drying sufficient (S-6 / S-7)
No drying / lower budget (S-3 / S-18)
LY-A7 touchless single-arm alternative

Technical Data

Key Specifications

A clearer spec layout reduces empty space and makes the most decision-critical parameters easier to scan.

Main technical parameters

Model	T-12 / T-12plus
Main Pump	Perfect Power (Maxten)
Voltage / Power	380 V, 22 kW
Water Consumption	90–120 L
Max Pressure	100–140 kg
Installation Size (L×W×H)	7 × 3.5 × 3.2 m
Frame Structure	L-arm left-right travel (more flexible rail-type layout)
Warranty	3 years for complete machine

Drying & control

Air Drying	Injection molded embedded mobile air drying (4 × 5.5 kW fans)
Pipeline Layout	3+N pipeline separation
Rail Type	Rail type (导轨式)
PLC	"Dual Core" dual PLC
Body	Stainless-steel body
Maintenance	Colorful water-curtain maintenance
Parking Detection	Automatic parking detection

Configuration Scope

Standard + optional content

Instead of leaving configuration buried in one long list, this layout separates included content, hardware support and optional discussion items.

Standard functions

Chassis and wheel hub washdown

360° surround high-pressure washing

360° spraying of car wash liquid

Touchscreen control system

"Dual Core" dual PLC

Automatic recognition of the car body

Automatic parking detection

Ceramic-core universal swivel joint

Lighting safety alarm

Mechanical + electronic anti-collision

Remote control one-button start + multifunction

Fault self-test system

One-click drainage / mechanical drainage

Stainless-steel body

Car wash counting system

Various liquid counting systems

Earth leakage protection system

Smart maintenance tips

Rail type

3+N pipeline separation

Injection molded embedded mobile air drying (4 × 5.5 kW)

Sound attenuation and damping system

LED guiding light

Varnishing with water wax coating

Automatic liquid dispensing

Colorful water-curtain maintenance

Core components

Main Pump	Perfect Power (Maxten); 15 kW Hebei Taili motor + Germany Maxten ceramic plunger pump (up to 140 kg)
Frame Structure	Flexible L-arm rail type; stainless-steel body
Warranty	3 years for complete machine

Optional / project discussion

24-hour unattended operation (standard on T-12plus)

Automatic door (standard on T-12plus)

Voice broadcast (standard on T-12plus)

Mobile phone remote control (standard on T-12plus)

High-pressure crosswind system (standard on T-12plus)

License plate recognition (standard on T-12plus)

Dedicated shock-absorber blocks and silencing for main pump (factory fitted)

Ultra-fine filtered water system — dual stainless filters (factory fitted)

Service support

Installation guidance, operator training, spare parts supply and remote technical support can be arranged for export projects.

Project Fit

Recommended applications

This block helps distributors and end buyers match the model to real site conditions instead of reading only technical parameters.

Flagship commercial wash centers

High-throughput gas stations

Operators requiring 3-year machine warranty

Rail-type bays needing flexible L-arm coverage

Smart unattended-ready sites (T-12plus)

Export markets comparing T-12 vs S-Series flagship

01Share site conditions

Country, power, water, bay dimensions and expected wash volume.

02Confirm model & options

Standard package, optional modules and utility matching.

03Quotation & export plan

Configuration, delivery, packing and support discussion.

Fast Comparison

Lineup comparison table

Long B2B pages work better when technical evaluators can jump directly to comparison. This table is included so buyers do not need to bounce between multiple pages.

Key item	LY-A5	LY-A7	GW	F320	S-6	S-7	S-18	S-19	T-12
Machine type	360° single-arm rotation (touchless)	360° single-arm rotation (touchless)	Compact contactless (no brush)	Reciprocating brush wash	L-arm + quick air-dry integrated	L-arm + quick air-dry (hanging rail)	360° L-arm rotation (touchless)	L-arm intelligent air-drying integrated	Flexible L-arm rail wash-dry integrated
Pump / washing output	80 kg / 100 L/min (Italian GTM)	100 kg / 115 L/min (Italian GTM)	100 kg/cm² plunger pump; 18.5 kW / 380 V motor	Brush wash + automatic foam / wax proportioning	Perfect Power; 60–90 kg; 16 kW / 380 V	Perfect Power; 100–120 kg; 16 kW / 380 V	Perfect Power; 60–90 kg; 11 kW / 380 V	Perfect Power; 100–140 kg; 22 kW / 380 V	Perfect Power; 100–140 kg; 22 kW / 380 V
Drying / fan layout	3 kW × 4	3 kW × 4 top + 5.5 kW × 2 side	5.5 kW × 4 all-plastic fans (fixed air dryer)	5.5 kW × 4 all-plastic fans	4 embedded mobile fans (4 × 5.5 kW)	4 embedded mobile fans (4 × 4 kW)	Not included	4 embedded mobile fans (4 × 5.5 kW)	4 embedded mobile fans (4 × 5.5 kW)
Power	15 kW / 380 V	18.5 kW / 380 V	380 V / 43 kW total	25 kW / 380 V	16 kW / 380 V	16 kW / 380 V	11 kW / 380 V	22 kW / 380 V	22 kW / 380 V
Cycle time	—	—	2–5 min	3–5 min	—	—	—	—	—
Self-service	QR code payment (standard)	QR code payment (standard)	24H QR self-service (optional)	QR code 24H self-service (standard)	Remote + multifunction; 24H unattended (optional)	Remote + multifunction; 24H unattended (optional)	Remote one-button start	Remote + multifunction; 24H unattended (optional)	Remote + multifunction; 24H unattended (T-12plus / optional)
Best fit	Balanced standard projects	Higher-demand touchless	Compact contactless + optional upgrades	Brush wash + unattended service	Wash + integrated drying (mid-range)	Higher-pressure wash + drying	Mid-range touchless before drying upgrade	Flagship S-Series + 3-year warranty	T-Series wash-dry + 3-year warranty

T-12 vs T-12plus

Core wash-and-dry parameters are shared; T-12plus bundles unattended, auto door, voice, remote, crosswind and LPR modules.

vs S-19

T-12 uses stainless-steel body and flexible L-arm rail layout; S-19 uses hanging rail and galvanized body in the S-Series family.

Warranty

Both T-12 and S-19 offer 3-year complete-machine warranty at the 22 kW / 100–140 kg class.

Common Questions

T-12 FAQ

These answers are written for pre-quotation conversations, so they focus on wash method, fit, configuration and support.

What is the difference between T-12 and T-12plus?

They share the same core pump, pressure, drying and standard wash feature set. T-12plus (Washing and Drying Machine) includes 24-hour unattended, automatic door, voice broadcast, mobile remote, high-pressure crosswind and license plate recognition.

What warranty does T-12 include?

The specification lists a 3-year warranty for the complete machine.

What pump and power does T-12 use?

Perfect Power (Maxten) with 100–140 kg pressure, 90–120 L water consumption and 380 V / 22 kW.

Does T-12 include air drying?

Yes. Standard configuration includes injection molded embedded mobile air drying with four 5.5 kW fans.

Inquiry Ready

Ask for T-12 quotation

For faster quotation, send your project country, site dimensions, 22 kW power availability, T-12 vs T-12plus preference and any optional unattended / LPR modules.

Project countrySite sizePower & waterDaily volumeRequired optionsTarget market

Go to Contact Page View All Models
