ZHUOJIE · Automatic Car Wash Equipment

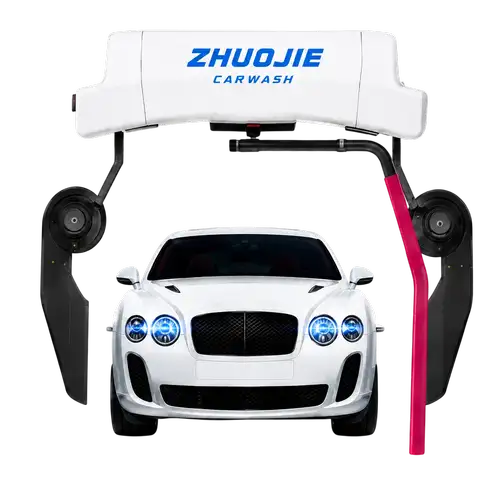

S-7 Quick Air-Dry Integrated Car Wash Machine — Main Machine

Pressure100–120 kg

Power16 kW

Water80–120 L

Drying4×4 kW fans

Model Positioning

S-7 Overview

This area is built to answer a B2B buyer's first questions quickly: what this machine is, where it fits, and how it differs from the other models in the range.

Why buyers consider S-7

100–120 kg maximum pressure delivers a clear performance step above S-6 within the same 16 kW power class.

Hanging rail type with 3 m pipeline separation improves chemical-line layout flexibility on commercial sites.

Full touchless wash stack plus embedded mobile drying (4 × 4 kW fans) supports wash-and-dry throughput.

Dual PLC, parking detection and mechanical + electronic anti-collision match premium automation expectations.

Water wax varnishing, automatic liquid dispensing and LED guiding lights complete the chemical and guidance package.

S-7plus shares core parameters with S-7 for buyers who need the plus-series appearance positioning.

Selection advice

Choose S-7 when pump pressure above 90 kg matters for your market, while keeping integrated mobile drying and the hanging rail S-Series layout.

Choose this model if

Need 100 kg+ pump class with integrated drying
Want hanging rail + 3 m pipeline separation
Compare S-7 vs S-19 for warranty and power

Consider other models if

Budget-focused sites without drying (S-3 / S-18)
Flagship 22 kW / 3-year warranty demand (S-19)
LY-A7 touchless single-arm alternative

Technical Data

Key Specifications

A clearer spec layout reduces empty space and makes the most decision-critical parameters easier to scan.

Main technical parameters

Model	S-7 / S-7plus
Main Pump	Perfect Power (Maxten)
Voltage / Power	380 V, 16 kW
Water Consumption	80–120 L
Max Pressure	100–120 kg
Installation Size (L×W×H)	7 × 3.5 × 2.9 m
Frame Structure	L-arm central rotation
Warranty	1 year for complete machine

Drying & pipeline

Air Drying	Injection molded embedded mobile air drying (4 × 4 kW fans)
Pipeline Layout	3 m pipeline separation
Rail Type	Hanging rail type
PLC	"Dual Core" dual PLC
Parking Detection	Automatic parking detection
Drainage	One-click drainage / mechanical drainage
Noise Control	Sound attenuation and damping system

Configuration Scope

Standard + optional content

Instead of leaving configuration buried in one long list, this layout separates included content, hardware support and optional discussion items.

Standard functions

Chassis and wheel hub washdown

360° surround high-pressure washing

360° spraying of car wash liquid

Touchscreen control system

"Dual Core" dual PLC

Automatic recognition of the car body

Automatic parking detection

Ceramic-core universal swivel joint

Lighting safety alarm

Mechanical + electronic anti-collision

Remote control one-button start + multifunction

Fault self-test system

One-click drainage / mechanical drainage

Hot-dip galvanized + sprayed body

Car wash counting system

Various liquid counting systems

Earth leakage protection system

Smart maintenance tips

Hanging rail type

3 m pipeline separation

Injection molded embedded mobile air drying (4 × 4 kW)

Sound attenuation and damping system

LED guiding light

Varnishing with water wax coating

Automatic liquid dispensing

Core components

Main Pump	Perfect Power (Maxten)
Frame Structure	L-arm central rotation; hot-dip galvanized + sprayed body
Pipeline	3 m pipeline separation; hanging rail type

Optional / project discussion

Multi-channel liquid level alarm (optional)

Multicolored high foam (optional)

24-hour unattended (optional)

Automatic door (optional)

Voice broadcast (optional)

Mobile phone remote control (optional)

High-pressure crosswind system (optional)

License plate recognition (optional)

Service support

Installation guidance, operator training, spare parts supply and remote technical support can be arranged for export projects.

Component atlas

Component architecture

The S-7 line is documented as independent system modules — layout, power, control, sensing, motion, fluidics and finishing — so buyers can scan hardware support without reading one long list.

7System modules

35Indexed parts

ZHUOJIE / LAYOUT

System Layout

Installation references for space planning, utility room arrangement and wash-bay traffic flow.

2 components

Layout01

Gantry Wash Bay Layout

3D system layout with gantry frame, utility room, tanks, control cabinets, water storage and entrance guide rail.

Gantry frameUtility zoneTrack system

Layout02

Compact Wash Bay Configuration

Alternative angle for explaining space requirement, installation location and traffic flow.

3D viewInstallation reference

ZHUOJIE / POWER

Power & Pump

Core pressure, filtration, vibration control and sound attenuation parts for stable daily operation.

5 components

Power01

High-Pressure Pump Motor Unit

Pump and motor assembly designed for stable high-pressure output during continuous commercial washing.

High pressureCommercial duty

Power02

Motor and Pump Assembly

Integrated motor base and coupling assembly for reliable drive transmission.

Stable outputBase mounted

Filtration03

Stainless Water Filter

Stainless filter component helps protect the pump and pipeline from particles and sediment.

Stainless steelProtects pump

Noise Control04

Sound Attenuation System

Enclosed noise-reduction cabinet for quieter and smoother equipment operation.

Noise controlService access

Shock Absorption05

Shock Absorption Cylinder

Red damping vessel used for pressure stabilization and vibration reduction.

Pressure dampingVibration reduction

ZHUOJIE / CONTROL

Control System

Control modules, interfaces, valves and electrical units arranged for simple operation and service.

7 components

Control01

PLC Control Modules

Core logic modules for wash sequence control, safety interlocks and system coordination.

Industrial PLCStable logic

Drive02

Inverter Drive Set

Variable-frequency drive components help achieve smoother motor starts and energy-conscious operation.

Soft startSpeed control

Power Supply03

AC-DC Switching Power Supply

Switching power supply module for stable electrical delivery to control and sensor circuits.

AC-DCProtection circuit

HMI04

Industrial HMI Dashboard

Touchscreen interface for wash status, operation monitoring and service guidance.

Touch interfaceData display

Valve05

High-Pressure Solenoid Valve

Solenoid valve for high-pressure water circuit switching and automatic wash sequence control.

24V controlWater circuit

Valve06

Ultra-High Pressure Diverter Valve

ZHUOJIE-branded diverter valve units for high-pressure circuit switching.

0–40 MPaZHUOJIE label

Diagnosis07

Fault Diagnosis Touch Panel

Fault query screen for operational alarms, status checks and maintenance prompts.

Fault queryGuided operation

ZHUOJIE / SAFETY

Safety & Sensors

Sensors, relays and protection devices that help reduce operation risk and downtime.

7 components

Sensor01

Through-Beam Sensor Set

Paired sensor cable assembly for vehicle detection and precise motion control.

Cable sensorDetection

Sensor02

Precision Position Sensor

Compact position probe with coiled cable for repeatable equipment positioning.

PositioningMetal probe

Protection03

Phase Protection Module

Electrical protection module for phase loss, phase error and power safety monitoring.

Phase guardAC 380V

Protection04

Thermal Overload Device

Thermal overload protection device helps prevent motor damage under abnormal load.

OverloadReset button

Relay05

Solid-State Relay Module

High-response solid-state switching module with cooling structure for stable electrical operation.

Fast switchingHeat sink

Remote06

Industrial Remote Controller

Rugged remote controller for convenient operator control and maintenance operations.

IP style housingHandheld

Relay07

Intermediate Relay Group

Relay group used for control logic, circuit isolation and sequential operation switching.

Relay groupCircuit control

ZHUOJIE / MECHANICAL

Mechanical Drive

Drive, bearing, suspension and stainless structural parts that support long-term motion reliability.

7 components

Drive01

Efficient Drive System

Drive structure with reinforced frame, roller connection and smooth transmission layout.

Drive trainLow maintenance

Drive02

Drive Roller Close-Up

Close-up view of the drive roller, bearing housing and motor connection.

Roller driveBearing seat

Structure03

Overhead Crane Production Line

Red structural assembly used to demonstrate the overhead equipment frame and moving mechanisms.

Frame assemblyProduction view

Structure04

Stainless Overhead Frame Parts

Stacked stainless frame components with machined connectors for long service life.

Stainless partsMachined holes

Structure05

Equipment Room Panels

Polished stainless tray and panel structures used in the equipment room assembly.

304 style steelPanel stack

Safety Wheel06

Independent Suspension Safety Wheels

Independent suspension and anti-fall wheel structure designed for safer movement on the guide rail.

Anti-fallRail safety

Bearing07

Dual Bearing Set

Sealed dual-bearing set for smoother movement and reduced service requirements.

Dual bearingSealed design

ZHUOJIE / PIPING

Piping & Fittings

Cable, pipe and fitting components selected for pressure, movement and corrosion resistance.

4 components

Cable01

Drag-Chain Cable Group

Flexible multi-core drag-chain cable group for continuous movement and repeated bending.

Flexible cableMulti-core

Fittings02

Forged Pipe Fittings

Threaded pipe fittings for high-pressure pipeline connections.

304 markingThreaded

Pipe03

Seamless Steel Pipes

Stacked seamless steel pipe group for high-pressure and long-life waterway construction.

Seamless pipeBundled

Joint04

Ceramic-Core Universal Joint

Metallic joint component for rotating or curved pipeline connection points.

Universal jointMetal body

ZHUOJIE / DRYING

Drying & Display

Drying fans and customer guidance components that improve finish quality and user flow.

3 components

Drying01

Side Fan System

Optional side fan system for improved drying effect on both sides of the vehicle.

Side dryingOptional

Drying02

High-Power Blower Fan Set

Grouped high-power blower modules for fast surface drying after washing.

High airflowFan set

Display03

LED Guiding Screen

LED guiding display for customer entry, positioning and exit instructions.

LED displayCustomer guide

Project Fit

Recommended applications

This block helps distributors and end buyers match the model to real site conditions instead of reading only technical parameters.

Higher-pressure commercial wash centers

Gas stations needing stronger rinse performance

Operators standardizing on hanging rail S-Series

Sites comparing S-7 vs S-19 warranty tiers

Export markets where 100 kg+ pressure is expected

Projects with flexible chemical-line routing

01Share site conditions

Country, power, water, bay dimensions and expected wash volume.

02Confirm model & options

Standard package, optional modules and utility matching.

03Quotation & export plan

Configuration, delivery, packing and support discussion.

Fast Comparison

S-Series lineup comparison table

Long B2B pages work better when technical evaluators can jump directly to comparison. This table is included so buyers do not need to bounce between multiple pages.

Key item	LY-A5	LY-A7	GW	F320	S-6	S-7	S-18	S-19	T-12
Machine type	360° single-arm rotation (touchless)	360° single-arm rotation (touchless)	Compact contactless (no brush)	Reciprocating brush wash	L-arm + quick air-dry integrated	L-arm + quick air-dry (hanging rail)	360° L-arm rotation (touchless)	L-arm intelligent air-drying integrated	Flexible L-arm rail wash-dry integrated
Pump / washing output	80 kg / 100 L/min (Italian GTM)	100 kg / 115 L/min (Italian GTM)	100 kg/cm² plunger pump; 18.5 kW / 380 V motor	Brush wash + automatic foam / wax proportioning	Perfect Power; 60–90 kg; 16 kW / 380 V	Perfect Power; 100–120 kg; 16 kW / 380 V	Perfect Power; 60–90 kg; 11 kW / 380 V	Perfect Power; 100–140 kg; 22 kW / 380 V	Perfect Power; 100–140 kg; 22 kW / 380 V
Drying / fan layout	3 kW × 4	3 kW × 4 top + 5.5 kW × 2 side	5.5 kW × 4 all-plastic fans (fixed air dryer)	5.5 kW × 4 all-plastic fans	4 embedded mobile fans (4 × 5.5 kW)	4 embedded mobile fans (4 × 4 kW)	Not included	4 embedded mobile fans (4 × 5.5 kW)	4 embedded mobile fans (4 × 5.5 kW)
Power	15 kW / 380 V	18.5 kW / 380 V	380 V / 43 kW total	25 kW / 380 V	16 kW / 380 V	16 kW / 380 V	11 kW / 380 V	22 kW / 380 V	22 kW / 380 V
Cycle time	—	—	2–5 min	3–5 min	—	—	—	—	—
Self-service	QR code payment (standard)	QR code payment (standard)	24H QR self-service (optional)	QR code 24H self-service (standard)	Remote + multifunction; 24H unattended (optional)	Remote + multifunction; 24H unattended (optional)	Remote one-button start	Remote + multifunction; 24H unattended (optional)	Remote + multifunction; 24H unattended (T-12plus / optional)
Best fit	Balanced standard projects	Higher-demand touchless	Compact contactless + optional upgrades	Brush wash + unattended service	Wash + integrated drying (mid-range)	Higher-pressure wash + drying	Mid-range touchless before drying upgrade	Flagship S-Series + 3-year warranty	T-Series wash-dry + 3-year warranty

Pressure class

S-7 reaches 100–120 kg — the high-pressure tier at 16 kW before S-19's 22 kW flagship.

Layout

Hanging rail with 3 m pipeline separation differentiates S-7 from rail-type S-6.

vs S-19

Choose S-19 for 22 kW output, 100–140 kg pressure and 3-year complete-machine warranty.

Common Questions

S-7 FAQ

These answers are written for pre-quotation conversations, so they focus on wash method, fit, configuration and support.

How is S-7 different from S-6?

S-7 offers higher maximum pressure (100–120 kg vs 60–90 kg), hanging rail layout and 3 m pipeline separation. Both include integrated mobile drying.

Does S-7 include air drying?

Yes. Standard configuration includes injection molded embedded mobile air drying with four 4 kW fans.

What is S-7plus?

S-7plus shares core parameters and features with S-7 for buyers who need plus-series positioning in the same pressure class.

What installation size is required?

Installation size is approximately 7 × 3.5 × 2.9 m with L-arm central rotation.

Inquiry Ready

Ask for S-7 quotation

For faster quotation, send your project country, site dimensions, power, water, pressure targets and optional module requirements.

Project countrySite sizePower & waterDaily volumeRequired optionsTarget market

Go to Contact Page View All Models
